WATROD Tubular Heaters

Fits Virtually Entire Range of Immersion and Air Heating Applications

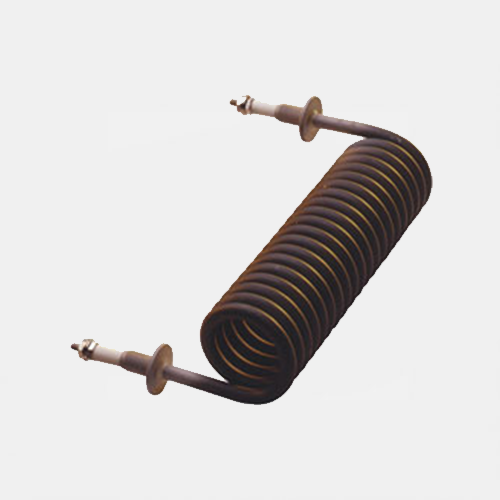

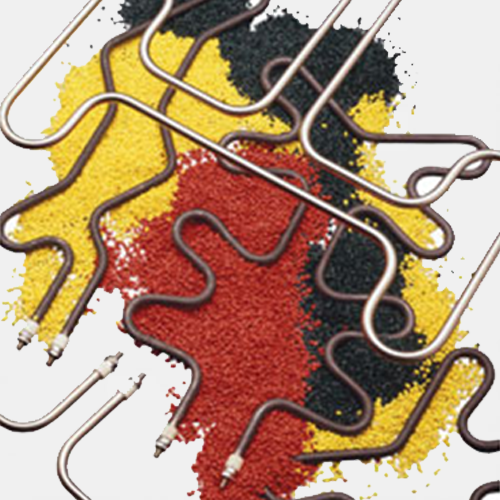

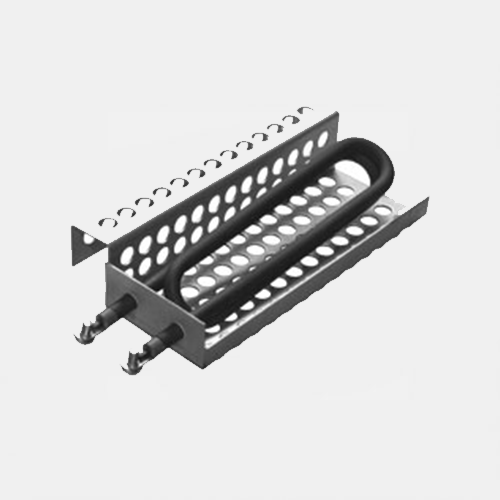

Available in single- or double-ended termination styles, the versatile and economical WATROD tubular heating element from Watlow lends itself to virtually the entire range of immersion and air heating applications. The single-ended WATROD tubular heater design has both terminals at one end. The opposite end is sealed. Flexible lead wires are 12 in. (305 mm) crimp connected to the terminal pin and have silicone-impregnated fiberglass oversleeves. The double-ended WATROD, with its round cross-sectional geometry, are highly adaptable for bending—especially when bending is performed in the field. Watlow's double-ended MULTICOIL tubular elements offer various combinations of resistor coils and thermocouples inside one sheath. They have the ability to sense the heater's internal temperature accurately every time, or offer three-phase capability in one element. Both single- and double-ended WATRODs share many construction features delivering long life—the resistance wire is centered in the heater sheath and electrically insulated with compacted, high-grade magnesium oxide for superior heating performance. WATROD tubular heating elements have a variety of mounting and termination options making them highly popular among industrial customers.

Material	Double-Ended Alloy 800/840
Maximum Operating Temperature - C	982
Maximum Operating Temperature - F	1800
Maximum Watt Densities	6.9
Maximum Watt Densities	45
Material	Double-Ended Stainless Steel
Maximum Operating Temperature - C	175
Maximum Operating Temperature - F	350
Maximum Watt Densities	9.3
Maximum Watt Densities	60
Material	Double-Ended Steel
Maximum Operating Temperature - C	400
Maximum Operating Temperature - F	750
Maximum Watt Densities	6.9
Maximum Watt Densities	45
Material	Singled-ended Alloy 800/840
Maximum Operating Temperature - C	870
Maximum Operating Temperature - F	1600
Maximum Watt Densities	6.9
Maximum Watt Densities	45
Material	Single-Ended Stainless Steel
Maximum Operating Temperature - C	650
Maximum Operating Temperature - F	1200
Maximum Watt Densities	9.3
Maximum Watt Densities	60
