Watlow F4T Temperature and Process Controller

The F4T® integrated process controller combines the flexibility of a modular I/O with best-in-class ease of use and a sleek touchscreen UI, additionally provides custom tailored configurations to meet the scaling needs of wide range applications and equip

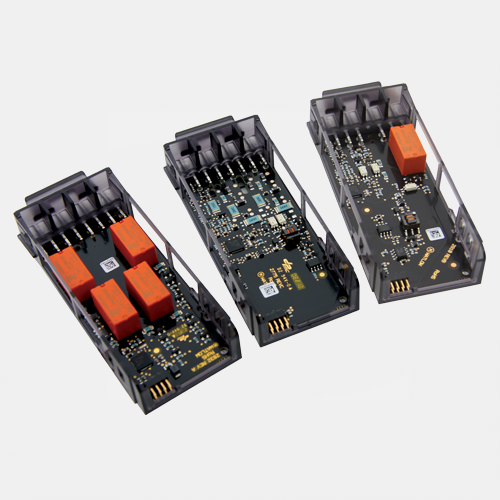

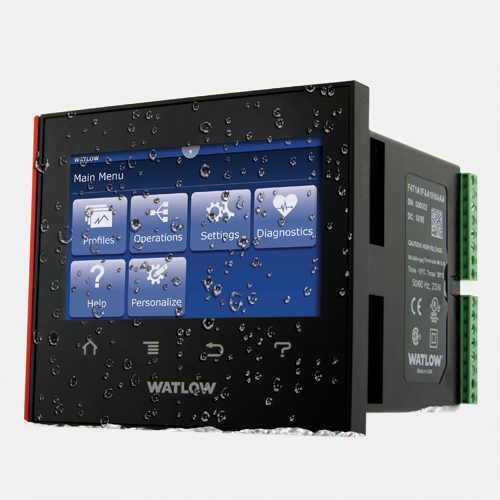

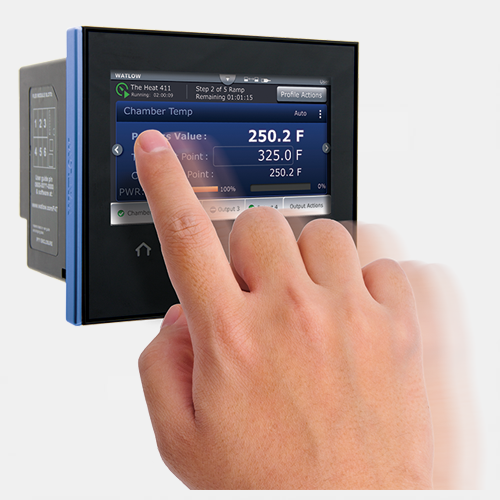

Now featuring e-mail and text alerts. Notify users of an event that has occurred such as a specific profile or step within a profile, alarm condition, limit condition or analog input error. The F4T temperature & process controller from Watlow offers a wide range of field removable I/O modules for maximum design flexibility. Configurations can be custom tailored to meet the scaling needs of a tremendous range of equipment and applications while providing exactly the hardware types required for compatibility. The F4T controller also features a 4.3 inch, color, graphical touch panel. Combining power, flexibility and functionality, this new controller offers unmatched versatility, and its best-in-class ease of use could very well make user manuals a thing of the past.

TRU-TUNE®+ Adaptive Control	Yes
Agency Approvals	UL/EN 61010 Listed, UL508, CSA, FM (limit), RoHS by design, China RoHS Level 2, W.E.E.E., CE
Alarms	Up to 14
Ambient Operating Range	-18 to 50C°C (0 to 122F°F)
Communication Protocols	Standard Bus Modbus® TCP Modbus® RTU SCPI USB 2
Control/Limit Loops	4/4
Description	1-4 PID loops with profiles & data logging options
Max Monitor Channels	24
Max Output	10A SSR
Mounting	Front panel or flush mount
Operating Requirements	N/A
Phase Configurations	1
Profiling	Yes
Supported Controllers	F4T, Flex Modules (FM), Composer PC software
Remote Limit Reset	1
Display Height	4.3" PCAP color graphical touch
