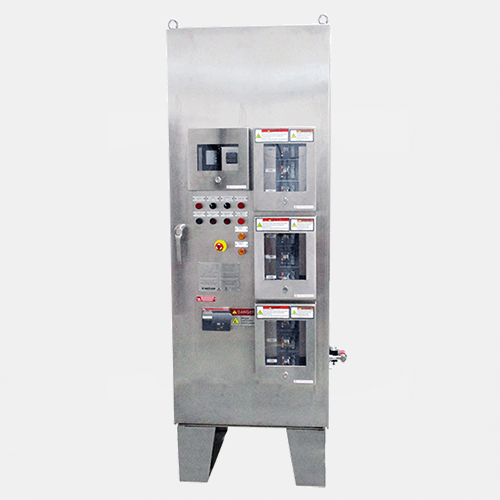

WATCONNECT Large and Extra-Large Control Panels

Watlow’s New WATCONNECT® Large and Extra-Large Panels Maximize Process Uptime and Small Footprint

Unlike most control panels installed in the field, WATCONNECT large and extra-large control panels permit safe access to control compartments allowing users to troubleshoot without shutting down the process. In addition, the large and extra-large panels only utilize 50% of the space that competitive panels require, which frees up areas for other critical equipment needed in the process. As an additional option, the Data Insights Package offers thermal system analytics such as power and control health, failed element detection, process continuity and more. All WATCONNECT control panels are pre-designed for a proven, high-quality solution.

Features and Benefits

Advanced thermal design

  • Offers high reliability
  • Includes solid copper internal power interconnect for less expansion and contraction
  • Provides environmental and field connection health monitoring for identifying issues before failure

Easy access to control compartment

  • Allows for panel troubleshooting without process shutdown

Resettable components

  • Reduces maintenance time
  • Eliminates need for spare parts

Small footprint

  • Utilizes up to 50% less control room space than other panels

Data Insights Package (optional) - Industry 4.0

  • Allows for review and analysis of the data collected by a data scientist and thermal system expert
  • Includes comprehensive quarterly thermal system report including insights and recommendations for system improvement
  • Offers collaborative touchpoints: Engineer-to-engineer data review
  • Enables preventative maintenance or factory assistance

Agency approvals North America: UL® / cUL® 508A Listed (non-hazardous area) NNNY Class I, Div II, Groups B/C/D (hazardous areas) NNNY Class I, Zone 2, Groups IIA, IIB, IIC Europe: Self-declared CE Safe Area to EN 602024 or EN 61439 directives without type testing
Models / Current Rating Large single bay – up to 720A Full Load Amps (800 mm wide) XL two bay / two disconnect – up to 1440A FLA (1600 mm wide) XL 3-7 bays / single disconnect – up to 4,320A FLA (2400 – 5800 mm wide)
Voltage Ratings (Three Phase) 230/240V, 380/400/415V, 440/460/480V, 575/600V, 690V (50 or 60 Hz)
Enclosures Carbon steel RAL Powder coated RAL 7035 or SS316 brush finish Each bay: 2000H x 800W x 600D (mm) + 200 mm plinth (indoors) or +300 mm leg kit (outdoors
Environmental UL® (CE) Type 1 (IP42), Type 4 (IP65) or Type 4X (IP65) Ambient up to 0°C to 40°C operating (without space heater) Ambient up to -18°C to 40°C (with space heater) Altitude <= 1000 mm without derate
Accessibility During Runtime Control compartment Fan compartment (allow access to components <= 120V) Hinged windows for branch MCCBs
Main Disconnect MCCB (300 – 1600A) or ACB (2500 – 5900A)
Feeder Field Wiring Wire sizes shown on quote schematic
Branch Protection MCCB (1-6 circuits per bay) or fuse (1-12 circuits per bay)
Load Field Wiring Wire sizes shown on quote and schematic
Internal Power Interconnect Insulated, stacked solid copper laminar bar (minimizes expansion / contraction versus wire) for high reliability
Power Controllers Watlow ASPYRE® SCR 2 leg or 3 leg E-Power custom for load management and load shadding
Process Controllers Watlow F4T® controller, PM4 controller or none (with 4-20mA power level input from DCS)
Safety Shutdowns Heater upset (primary) – Watlow PM6 limit controller(s); disconnects: Safety contactor Heater upset (secondary) – Limit controller communicates status to process controller and DCS Remote DCS shutdown E-stop SCR overtemp, enclosure overtemp (optional)
Cooling Options High reliability EC inlet and outlet fans N+1 variable speed high reliability EC fans with advanced monitoring: Local and remote status, test button, spare rotation – 50% longer lifetime rating than industry standard fans (60,000 hours) Air conditioner
Local Pilots Illumination: Control on/off Heater on/off E-Stop: With reset button for CE panels Over-temp: Push to reset Common alarm SCR fault: Push to reset (optional) GFCI fault: Push to reset (optional) Environmental fault: Push to reset (optional) Local
DCS I/O Remote permissive / shutdown High limit alarm Common alarm Environmental failure (with monitoring option) Analog – remote set point Analog – process temperature re-transmit
Data Insights Package Power and temperature controller health Minimum data set: Current, voltage, power, leg balance, SCR / controller alarms Field element detection Minimum data set: Current, voltage, power, leg balance, SCR / controller alarms Process continuity (process
